Compatible filter set

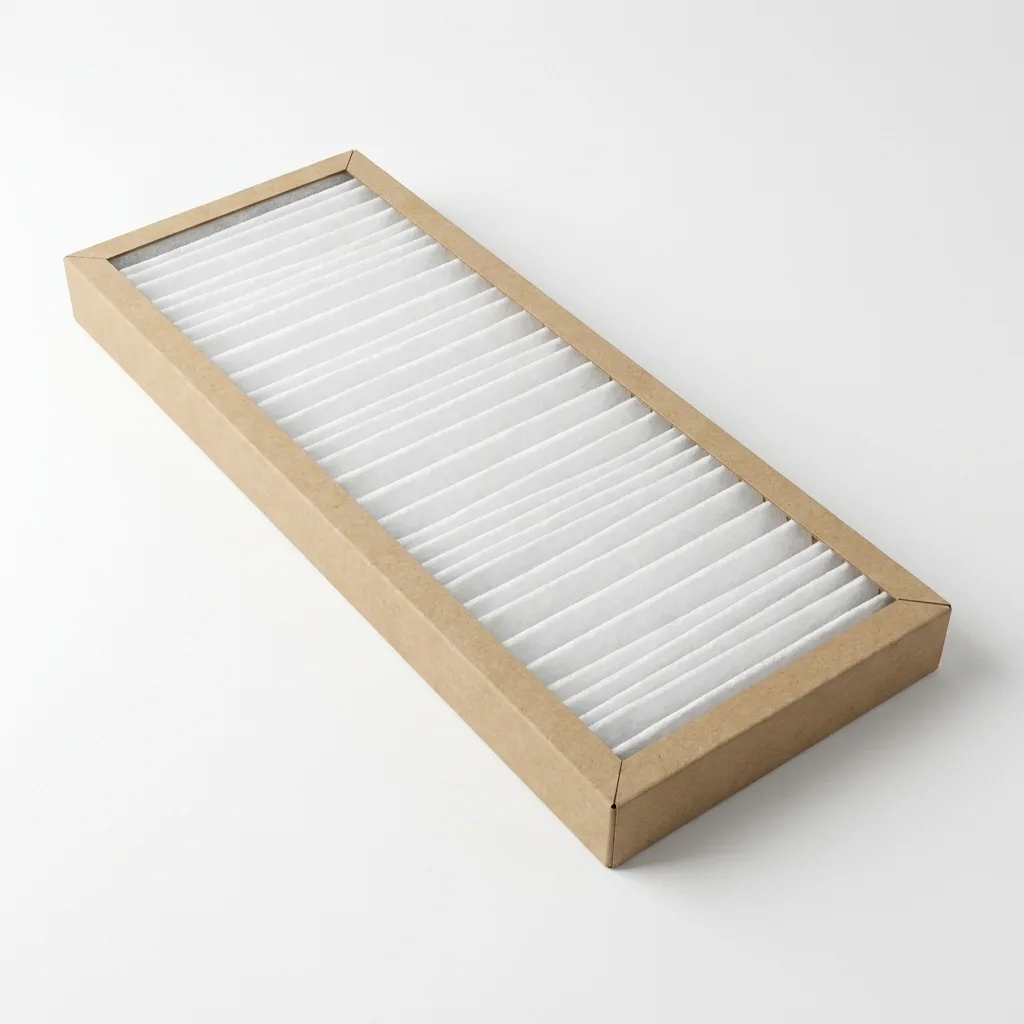

G4/G4 filter set for Orcon HRC 300
2 filters · 185 × 560 × 23 mm · cardboard frame
The G4/G4 set follows the factory configuration of the Orcon HRC 300: one ISO Coarse 75% filter (formerly G4) on the supply side and one on the extract side. The standard choice for a home without particular constraints.
€26.50incl. 21% VAT
Out of stock, restocking in progress
Notify me when available
- Compatible with Orcon HRC 300, matching dimensions and filter class
- Delivery in Belgium, free from €75.00
- Secure payment, Bancontact, cards
- Made in the European Union
Compatible filters, not original parts. Brand and model names are used solely to identify the units concerned.
What the set contains
Each set delivers every filter of the unit, ready to fit.
| Class | Position | Dimensions | Frame |
|---|---|---|---|
| 2 × ISO Coarse 75 % · G4 | Extract air, Supply air (fresh) | 185 × 560 × 23 mm | cardboard |
Why this set
- Identical to the factory configuration
- Best price and lifespan
- Lowest pressure drop
G4 or F7?
| ISO Coarse 75% (G4) | ISO ePM1 65% (F7) | |
|---|---|---|
| Stops | Dust, insects, lint | Pollen, fine particles, soot |
| Position | Extract and supply air | Supply air, intake side |
| For whom | The unit's standard configuration | Allergies, city, busy road |
| Lifetime | 6 months | 6 months, watch it more closely |
Specifications
- Set
- G4/G4 · G4/G4 filter set (ISO Coarse)
- Unit

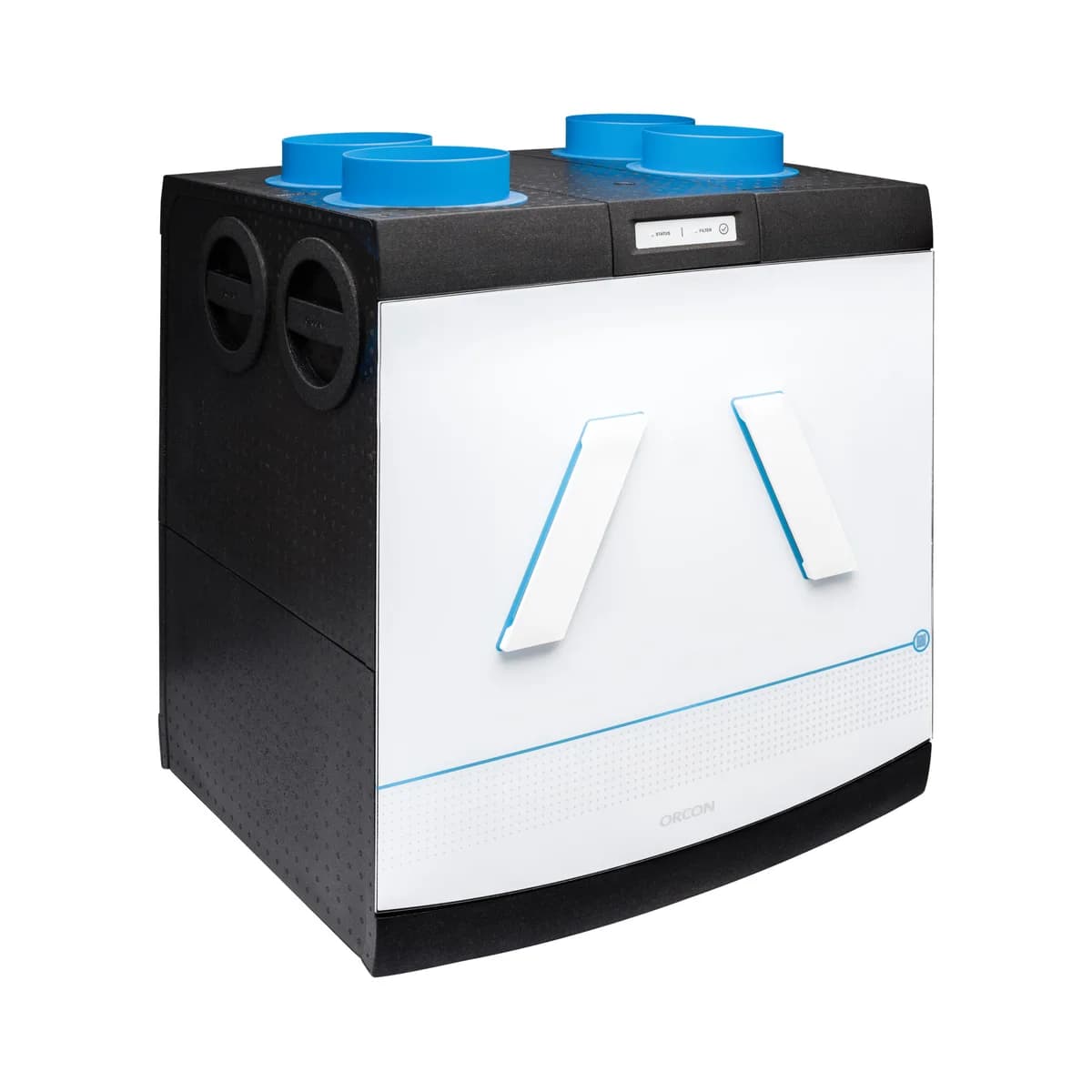

- Orcon HRC 300
- Number of filters
- 2
- Filter dimensions
- 185 × 560 × 23 mm
- Thickness
- 23 mm
- Frame
- cardboard
- Available classes
- 2 × ISO Coarse 75% (G4)
- VMCD reference
- KIT-185x560x23-CARTON-G4G4
- Type
- Compatible filter, not an original part
- Made in
- European Union
- Recommended replacement
- Every 6 months, check every 3 months
When and how to replace
Every six months in most homes, more often near a road, during building work or with pets. A grey, bulging or smelly filter needs replacing without waiting for the date.
- 01
Switch off the power
Turn the unit off or cut the breaker before opening the hatch.
- 02
Open the filter hatch
Remove the old filters and note their direction: an arrow or label shows the air inlet side.
- 03
Slide in the new filters
The F7 goes on the supply side, the G4 on the extract side. The frame must sit flat, without play.
- 04
Reset the indicator
Close up, switch back on and reset the filter reminder on the controller, if there is one.
The other sets for this unit
Same dimensions, different filter class.
This set also fits
These units use the same filter shape.
Frequently asked questions
Is this G4/G4 set an original Orcon part?
No. It is a compatible set, made to the dimensions of the HRC 300 filter (185 × 560 × 23 mm) and to the stated filter class, by a European manufacturer of ventilation filters.
When will this set be dispatched?
Within two working days of payment, by parcel, anywhere in Belgium. If the set is out of stock, leave your email: we will let you know as soon as it is back.
How do I fit the filters in the HRC 300?
The fine filter (F7) goes on the supply side, the coarse filter (G4) on the extract side. An arrow or label on the frame shows the air direction. Reset the filter indicator after fitting.
Would you rather we did it?
In Brussels, Brabant and Hainaut we replace the filters during the unit's service visit and hand you a written report.
